What is the guide device, which parts it consists of, and what is its function?

On the profile and wire rolling mill, the guide device is installed on the rolling mill frame, located in front of and behind the roll. The guide between the rolling mill frames supports the smooth entry and exit of the rolled piece into the rolling mill.

The role of the guide device is to correctly guide the rolled piece into the roll pass; Ensure that the rolled piece deforms stably in the pass, and obtain the required geometric shape and size; And smoothly guide the rolled piece from the pass to prevent roll winding; Control or force the rolling piece to twist or bend and move in a certain direction.

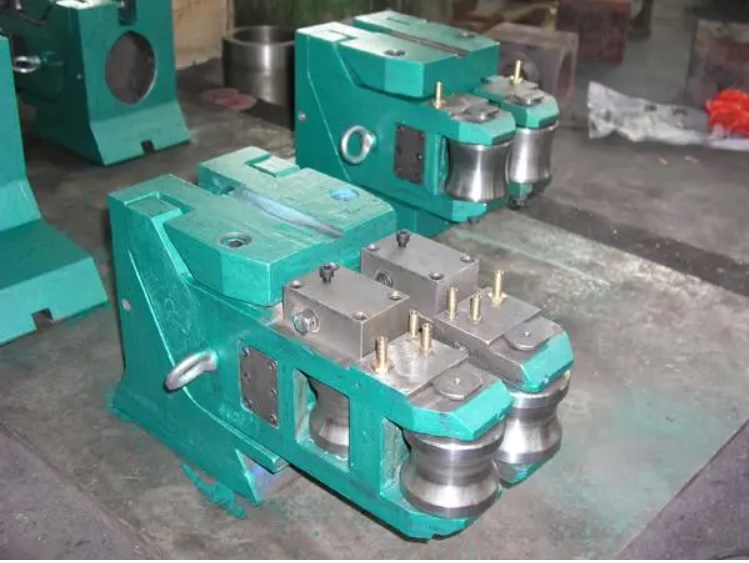

The guide device is composed of beam, guide plate, guard plate, splint, guide box, support plate, torsion guide plate, torsion roll, apron, guide tube and other devices to induce and clamp the rolled piece or make the rolled piece deform and twist at the pass.

Whether the design and use of the guide device is reasonable or not will directly affect the quality of the rolled products and the production capacity of the rolling mill. Although the pass design is reasonable, if the guide device is not designed or used properly, it will not be able to produce qualified finished products. A good design and speed regulation of the guide device can also make up for the deficiency of the pass design.
